Initial Setup
Step 1

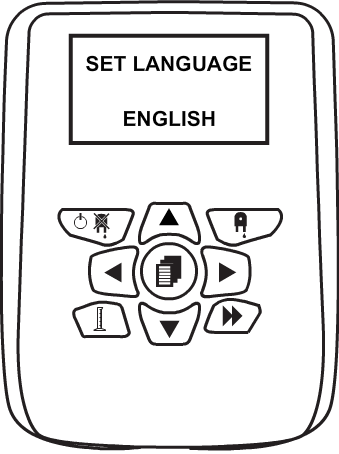

When the unit firsts boots you will be asked to select a language. Use the UP & DOWN arrows to change the selection. Pressing the RIGHT arrow will save and advance to the next screen.
Step 2

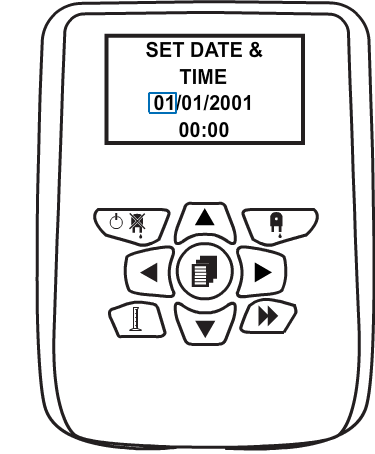

The next screen will ask you to set the time and date. Use the UP & DOWN arrow keys to adjust the values. Press the RIGHT arrow to save and advance.
Step 3

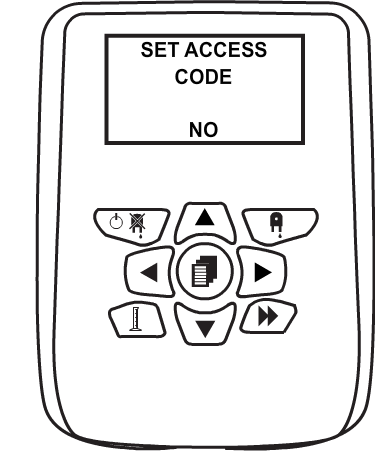

The next screen will ask you to set a passcode for the unit. Use the UP & DOWN arrows to change the selection to YES to set a custom code. No will set the code to the default of ‘1111‘.
If you select YES you will be asked to set a custom password for the unit. Use the UP & DOWN arrow keys to select the password. Use the RIGHT arrow to confirm the number and advance to the next screen. If NO is selected password will default to 1111.
Step 4

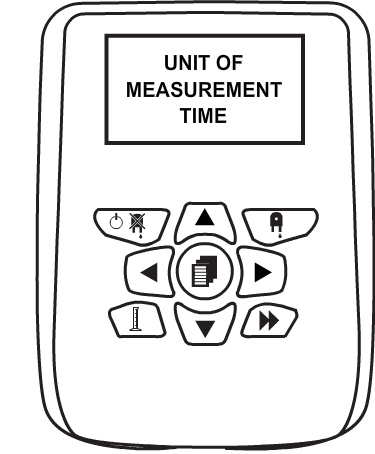

The final screen will allow you to switch the Unit of Measurement from TIME to ML, FL. OZ or GRAMS. Use the UP and DOWN arrow to change selection. RIGHT arrow to confirm.
Input Information/Wash Cycles and Firmware
Step 1
From the main screen press the UP button will take you to the Wash Cycle screen.

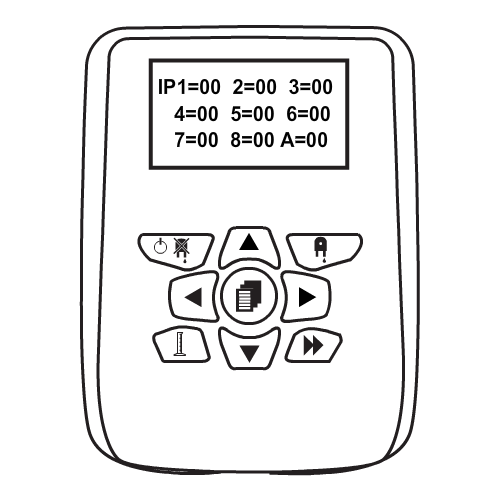

Input information is displayed on this screen. When an input signal is received to the input it will change from a 0 to a 1. Press the UP button to move to Total Wash Cycles.
Step 2

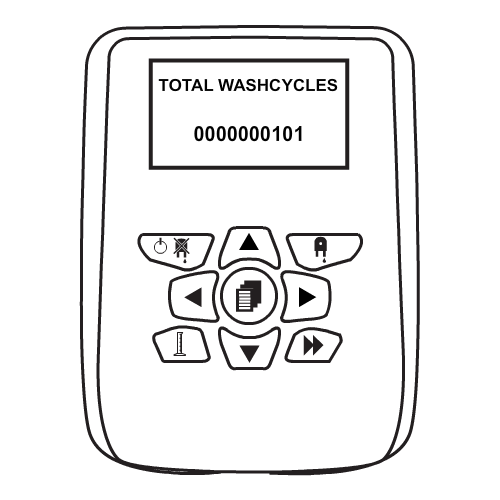

Total Wash Cycles completed are shown here. Press the UP button to move to the Firmware information.
Step 3
The Firmware Version, Serial Number, date and time are displayed here. To access the firmware for the other boards, press the RIGHT arrow.
