Brightwell Quantura range

Reliable and efficient
chemical dosing systems

Maintain a safe and efficient commercial
kitchen with our Quantura systems, and
deliver exceptional cleaning results with
spotless dishes and extended life span
of equipment.

Efficient and easy with Quantura

Our commercial dishwasher dosing system uses pulse technology for low flow rates and includes a conductivity sensor for accurate dosing. With pre-wiring for easy installation, its modular design allows for simple upgrade from a two pump to three pump system.

The Quantura range

Quantura 10/10+

Quantura 200/200S

Quantura 10/10+

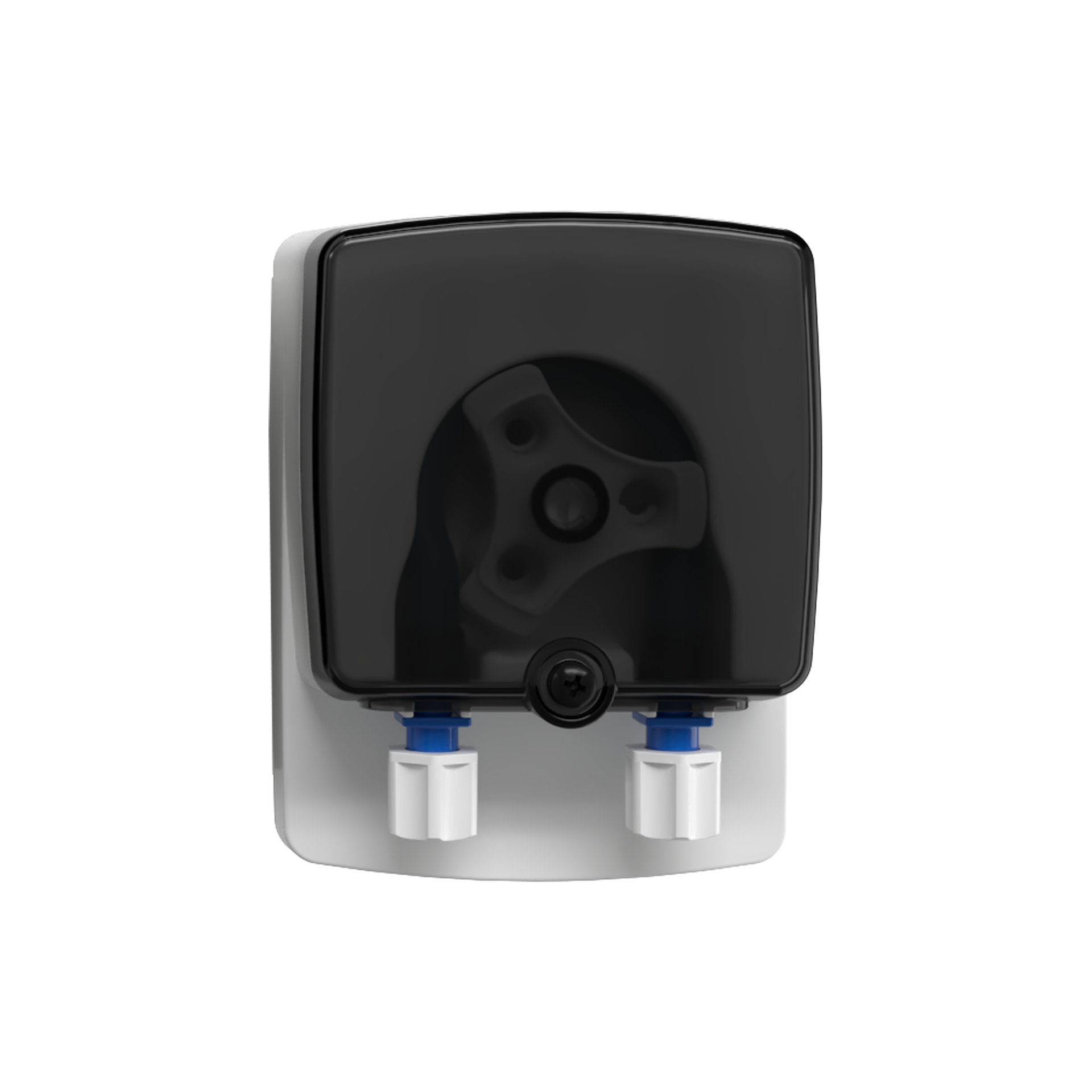

The ultimate solution for reliable and efficient dosing of detergent or rinse-aid for glass and under-the-counter commercial dishwashers. With a single peristaltic pump, you can trust that your glassware and crockery will be spotless every time.

Supplied pre-wired and with a full install kit, the mounting bracket and compression tube fittings provide an effortless installation.

Flexibility is provided from selectable Time, Speed and Conductivity* operating modes with simple setup using the intuitive controls.

* Probe requires Quantura 10+ and conductive probe

Features

  • Versatile power supply with range of 100-240V AC, 50/60 Hz
  • Adjustable flowrates from 10ml/min to 100ml/min with Detergent tubing and 5ml/min to 50ml/min with Rinse aid tubing with Quantura 10. The Quantura 10+ offers 15ml/min to 150ml/min with Detergent tubing and 7ml/min to 70ml/min with Rinse aid tubing
  • Reliable operating pressures with 1bar max for Detergent tubing and 1.5bar max for Rinse aid tubing
  • Multiple operating modes to suit your needs. Time and speed modes with Quantura 10, Time, Speed, Probe, and remote dose modes with Quantura 10+
  • Optional Conductive Probe for monitoring and controlling detergent levels, providing even greater control and flexibility (Quantura 10+ only)
  • CE compliance with IP55 ingress protection for added safety
  • Compact Design with full installation kit and compression tube fittings for easy install
  • Branding options available to promote your brand

*Flow rates with water and Silicone tubing

Quantura 200/200S

The Quantura 200 and Quantura 200S chemical dosing systems offer advanced technology and innovative design to deliver precise and reliable dosing of detergent and rinse aid in commercial dishwashers.

The Quantura 200 features two peristaltic pumps with high-quality brushless DC motors and our proprietary BrightChem tube. The Quantura 200S uses a solenoid valve alongside a peristaltic rinse aid pump. The solenoid valve allows control of a powder bowl system for when solid detergent products are being used.

The Quantura range also incorporates a maintenance mode to disable the unit when performing descaling operations.

If you require a third pump for sanitiser, please see our Quantura 100 product, specifically designed alongside the Quantura 200/200S, with seamless integration for ease of use

Features

  • 100-240V AC, 50/60 Hz power supply for multi-destination compatibility
  • Adjustable pump flowrates and BrightChem tubing; Detergent: 30ml/min to 250ml/min, Rinse aid: 3ml/min to 30ml/min*
  • Reliable operating pressures with 1bar max for Detergent tubing and 1.5bar max for Rinse aid tubing
  • Variable trigger signals: 24V to 240V (AC or DC), opt isolated for safety
  • Multiple operating modes to suit your needs; Conductivity (with probe) or Cyclic (without Probe) for conveyor machines and Timed (without Probe) for single rack machines
  • Multilingual programming for seamless usage across different languages
  • Twin pump (Quantura 200) for liquid detergents or Solenoid and Pump (Quantura 200S) for use with solid detergents
  • Approved for safety and quality; CE, CB Scheme and CSA certification, guaranteeing compliance to rigorous standards
  • Branding options available for a personalised touch
  • 2-year warranty for added peace of mind

*Flow rates with water and BrightChem tubing
