Understanding the difference among all the Brightwell pumps
In dosing and dilution applications, selecting the right technology is critical to achieving accurate chemical delivery, operational efficiency, and long-term reliability.
From mechanically driven pumps to water-powered systems, each technology offers distinct advantages depending on the application. In this article, we explore five key solutions used across the industry: diaphragm, peristaltic, venturi, pneumatic, and electric pumps.
Diaphragm Pumps: Precision Under Pressure
Diaphragm pumps are a well-established solution for controlled chemical dosing.
How it works
A flexible diaphragm oscillates within a chamber, drawing in and discharging fluid through check valves, delivering a fixed volume per stroke.
Key advantages in dosing systems
- High pressure capability, ideal for injection into pressurised lines
- Reliable and consistent dosing accuracy
- Suitable for aggressive or corrosive chemicals
Limitations
- Pulsating flow (may require dampening)
- Valve wear can impact performance over time
Where to find it in our products
Peristaltic Pumps: Accuracy with Simplicity
Peristaltic pumps are increasingly used where precision and hygiene are priorities.
How it works
Rollers compress a flexible tube, pushing fluid forward while isolating it from pump components.
Key advantages in dosing systems
- High dosing accuracy and repeatability
- Fluid containment within tubing, eliminating contamination risk
- Self-priming and dry-run capability
- Simple maintenance (tube replacement only)
Limitations
- Limited pressure capability
- Tubing is a consumable component

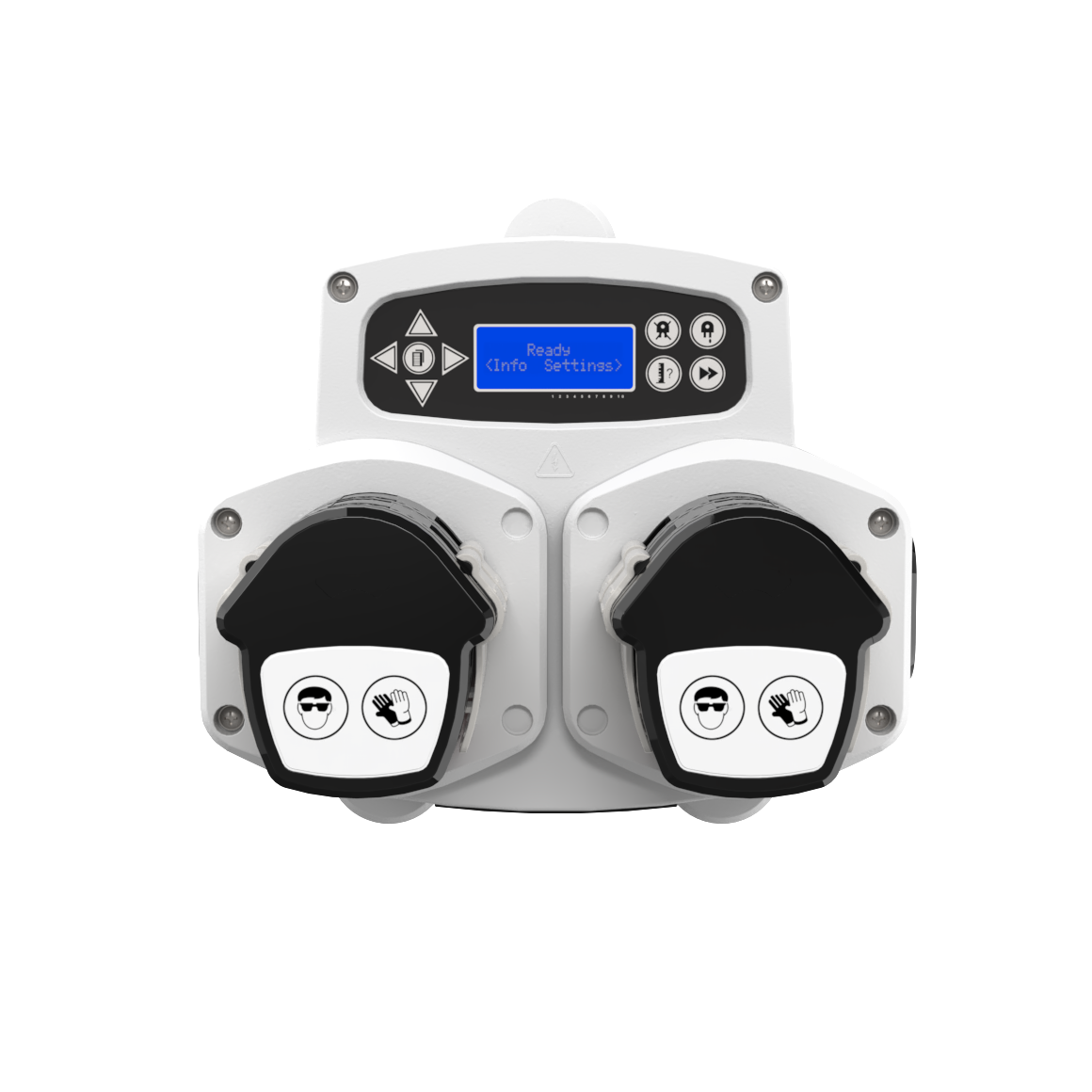

Where to find it in our products
Venturi Systems: Water-Driven Dilution
Venturi systems offer a simple and effective way to dilute chemicals without mechanical pumps.
How it works
Water flow through a restriction creates a pressure drop, generating suction that draws chemical concentrate into the stream.
Key advantages in dilution systems
- No electricity required
- Low maintenance and high reliability
- Ideal for on-demand dilution at point of use
Limitations
- Dependent on stable water pressure
- Lower dosing precision compared to pumps
- Not suitable for viscous products

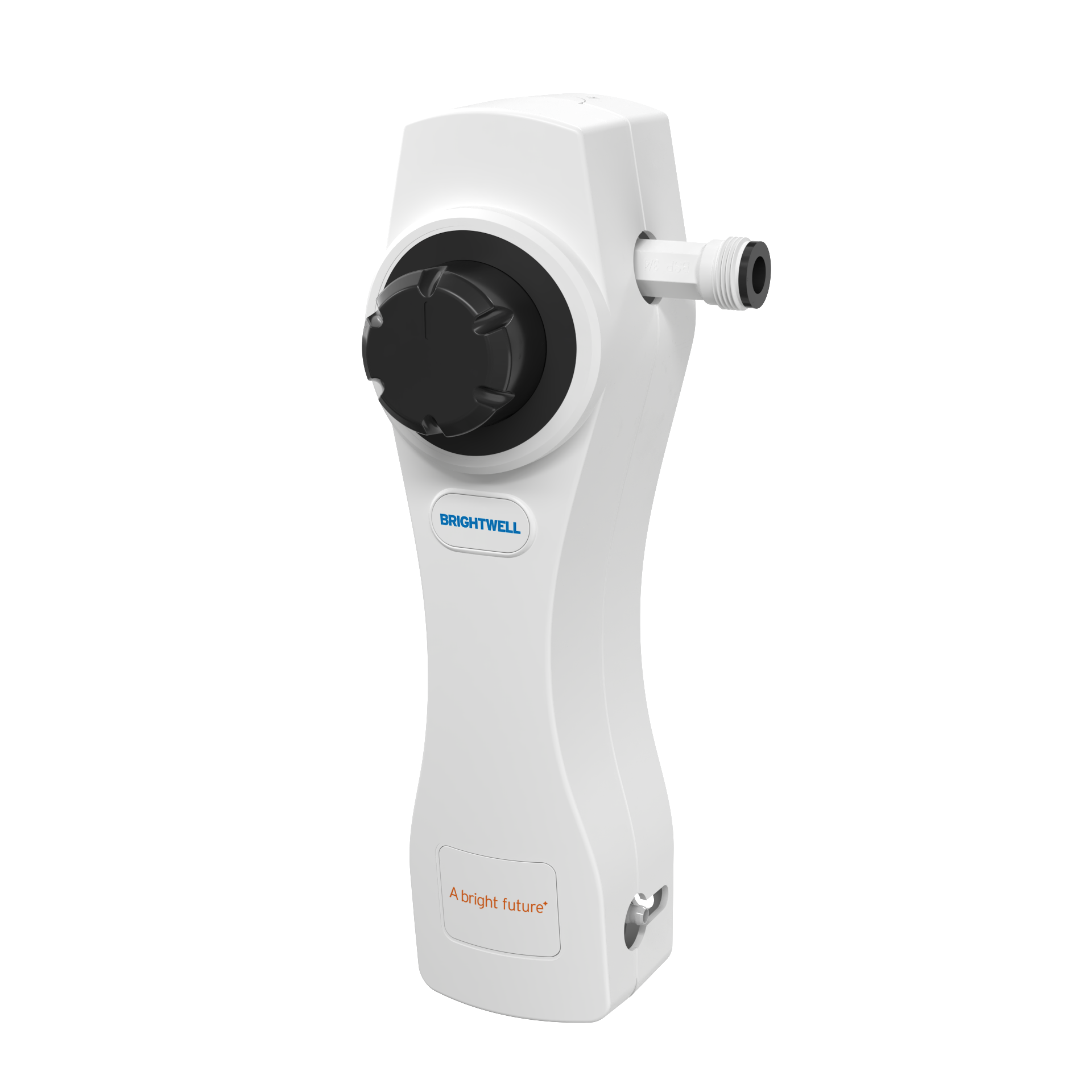

Where to find it in our products
Pneumatic Pumps: Power in Demanding Environments
Pneumatic pumps (typically air-operated diaphragm pumps) are widely used in industrial dosing applications where robustness is essential.
How it works
Compressed air drives a diaphragm or piston, creating a pumping action without the need for electrical power at the pump itself.
Key advantages in dosing systems
- Safe for hazardous or explosive environments (no electrical components at the pump)
- Handles viscous, abrasive, or particle-laden fluids
- Can run dry without damage
- Strong and durable in harsh conditions
Limitations
- Requires a compressed air supply
- Less precise for fine dosing without additional control systems
- Higher energy cost due to air consumption

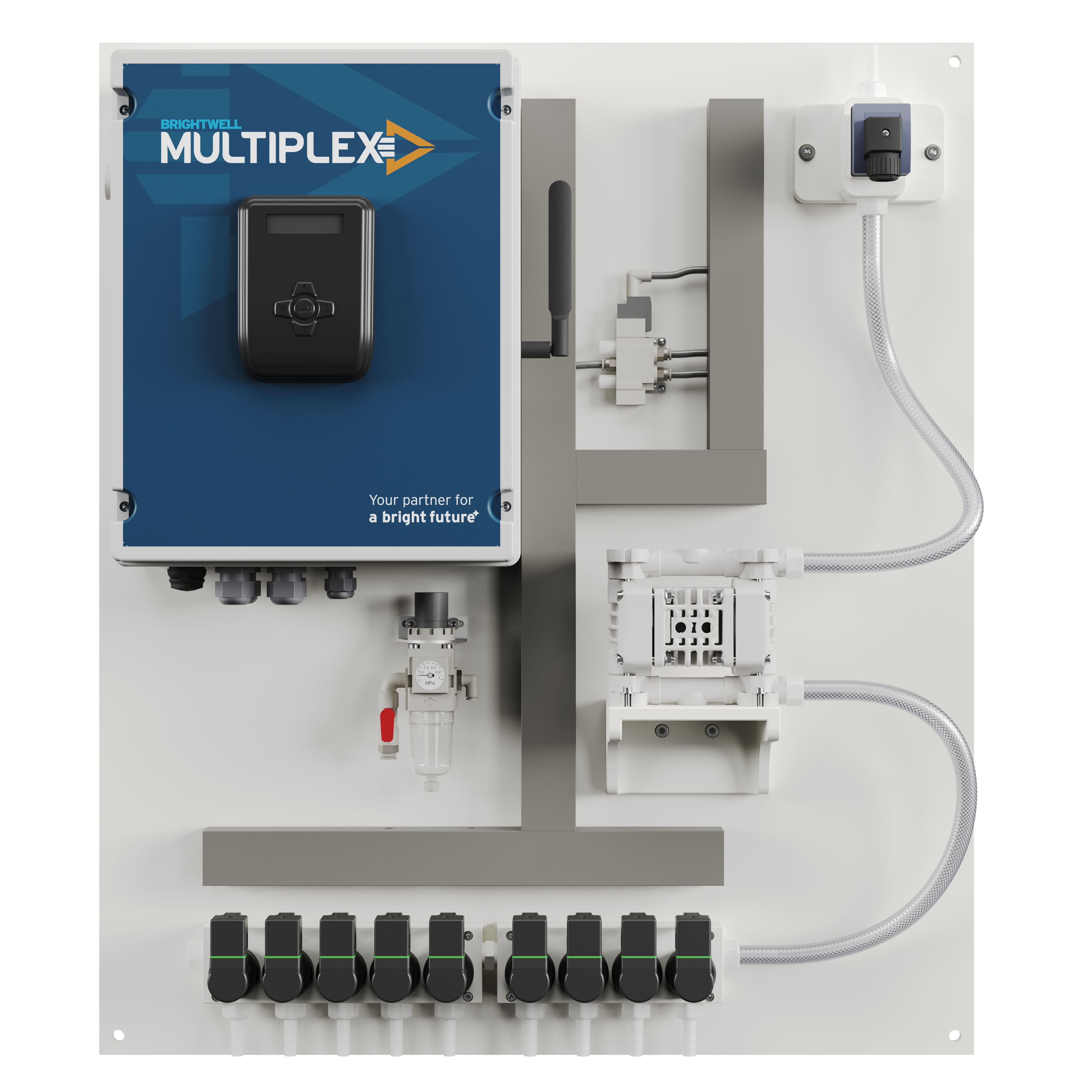

Where to find it in our products
Electric Pumps: Controlled and Connected Dosing
Electric pumps are a broad category that includes motor-driven dosing pumps (such as solenoid or motor diaphragm pumps and peristaltic variants).
How they work
An electric motor or solenoid drives the pumping mechanism, often with integrated controls for flow rate, timing, and automation.
Key advantages in dosing systems
- Highly controllable and programmable dosing
- Easy integration with automated and IoT-enabled systems
- Suitable for both simple and complex dosing requirements
- Wide range of flow rates and configurations
Limitations
- Requires electrical power
- May need protection in wet or harsh environments
- Higher upfront complexity compared to passive systems

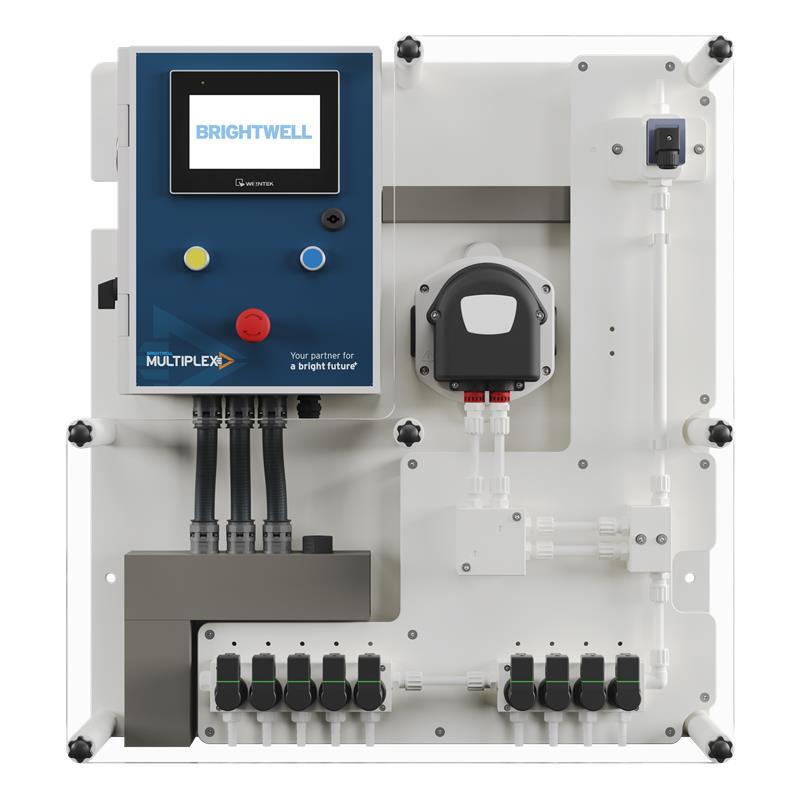

Where to find it in our products
Key Differences
| Feature | Diaphragm | Peristaltic | Venturi | Pneumatic | Electric |
| Power source | Electric / mechanical | Electric / mechanical | Water flow | Compressed air | Electricity |
| Accuracy | High | Very high | Moderate | Moderate | Very high |
| Pressure capability | High | Low–medium | Water-dependent | Medium–high | Varies |
| Maintenance | Medium | Low | Very low | Medium | Medium |
| Best for | Pressurised dosing | Precision dosing | Simple dilution | Harsh environments | Automated systems |
Choosing the Right Technology
Selecting the right solution depends on your operational priorities:
- For precision and cleanliness → Peristaltic pumps
- For high-pressure injection → Diaphragm pumps
- For simple, cost-effective dilution → Venturi systems
- For demanding or hazardous environments → Pneumatic pumps
- For automation and smart control → Electric pumps
In many modern dosing and dilution systems, combining technologies delivers the best results—for example, venturi dilution paired with electric dosing control, or peristaltic pumps integrated into automated systems.
